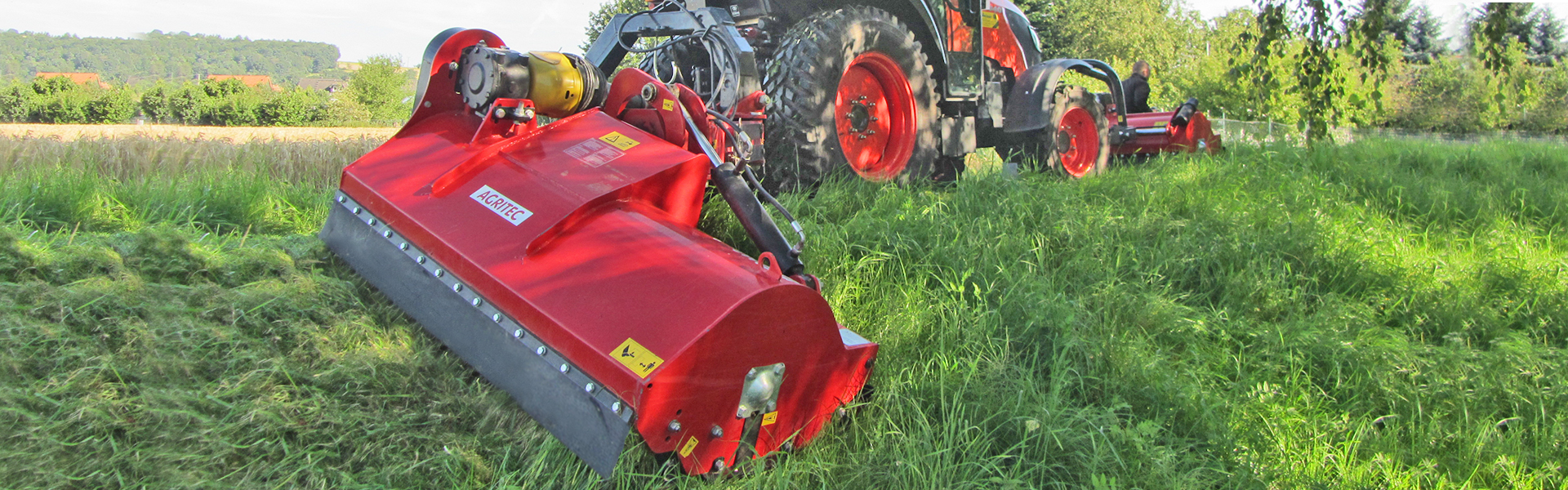

The GS51-P series rear and side mulchers have been developed to cleanly mulch green areas, hedges, strawy and knotty material alongside the tractor at an angle of -60° downwards and up to 90° upwards. Preferred applications of the GS51-P are the mowing of ditches and embankments, verges along hiking, field and cycle paths, roadsides and green areas. Municipal and compact tractors with a power of 50 to 90 hp are particularly suitable as towing vehicles.
Equipped with 1080 g hammer flails for tough mulching material, the rotor of the GS51-P creates a clean cutting pattern with the straight cutting edges of the tool. The individual arrangement of the blades enables a very high rotor speed, which, in combination with the design of the tools, enables a strong suction effect in the mulch housing. As a result, the material is shredded very finely and the surface of the cuttings is additionally broken, which in turn significantly promotes the mulching process.
With the hydraulic side shift, users have a continuously adjustable working range from the rear left tyre to the right side outside the lanes of the carrier vehicle. An additional hydraulic cylinder variably positions the mulching head within the pivot range. Special linkage designs ensure good adjustment of the mulching head to the ground and optimal surface maintenance.
At a glance
Highlights
Hydraulic tilt adjustment ensures maximum flexibility
Thanks to the hydraulic tilt adjustment of the mulcher from -65° to +90° and hydraulic displacement by 35 cm, you benefit from maximum flexibility when working on slopes, roadsides, verges, road and field edges etc. The fact that the GS40-P7GS41-P can also be mounted at the rear, unlike the GS40-S/GS41-S side flail mulcher, offers many more possibilities regarding the terrain.
Stable driving due to ideal weight distribution
Thanks to the specially designed suspension of the mower head on the frame of the side flail mower, part of the weight of the mower head is transferred to the left-hand lower link and thus the left-hand side of the tractor – the dreaded tipping of the towing vehicle becomes almost impossible and you get even pressure on the soil.
Automatic latch safety locking protects against damage
A latch which pulls the mulching head backwards and opens upwards serves as collision protection. The latch is engaged again by simply raising the tractor hydraulics. The gearbox is also protected against collision damage through the special attachment of the right-hand parking support.
Product video
Other product features
- 1080 g hammer flail for knotty / bushy material with a diameter of <6 cm
- Central transport position behind the towing vehicle
- Operation of all hydraulic functions through the tractor hydraulics (2 double-acting control valves required)
- Rotor shaft made from high-quality seamless drawn precision steel tubing
- Extremely smooth running and vibration-free thanks to special electronic balancing of the rotor at full operating speed
- Robust steel housing with large housing overhangs for more safety
- Driven by three V-belts
- Belt tensioner accessible from the outside
- Specially protected rotor bearings which can be lubricated from the outside
- Self-cleaning rear roller and reinforced mountings with closed maintenance-free or greasable bearings
- Rear roller slanted to protect the soil
- Rear rubber skirt freely suspended on hinges and flexible front plastic lamella as stone guards
- Lateral skids
